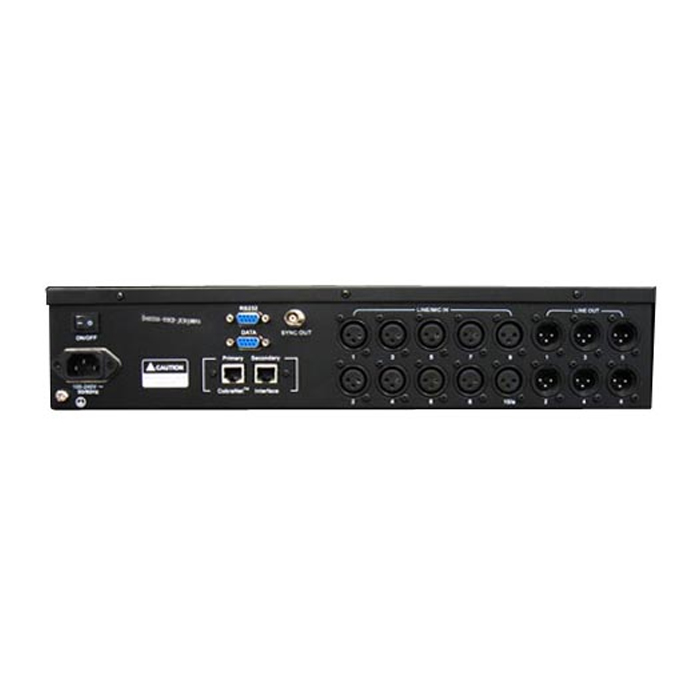

Feature of AM106
AM is an intelligent mixer dedicated designed for all forms of conference discussion systems and unattended sound reinforcement system. It is integrated audio equipment, which can provide 10 Channel input and 6 Channel output, with AD conversion, DSP process, matrix management, DA conversion and network transmission. Using AM intelligent mixer, it is easy and convenient to create a conference and sound reinforcement system, just by connecting the external equipments such like microphones and speakers etc.
Specifications
ANALOG AUDIO INPUT SPECIFICATION
10 channel input (Mic/Line)
analog input converted to 24bit ,48khz digital audio
frequency response +/-0.2dB，20Hz~20kHz
THD plus noise : <0.01% @4dbu
Dynamic range : 103dBA，101dB
Maximum input level: +24dBu,balanced differential
Input impedance: 6.3kOhms
ANALOG AUDIO OUT PUT SPECIFICATION
24-bit ,48khz digital audio converted to analog output
frequency response +/-0.2dB，20Hz~20kHz
THD plus noise : <0.01% @4dbu
Dynamic range : 103dBA，101dB
Maximum output level: +24dBu,balanced differential
Output impedance: 100 Ohms designed to drive a minimum load of 600 Ohms
INTERFACE SPECIFICATION
Two RJ45 network port or optical fiber port
One RS232 port (9-pin D-type)
OTHER SPECIFICATION
Power supply:100-240V AC,frequency:40~60hz
Power consumption: less than 30W
Device dimension(L×W×H)：432×330×89 (unit: mm)
Surrounding temperature : +5-40°C
Surrounding humidity: 5-85%
