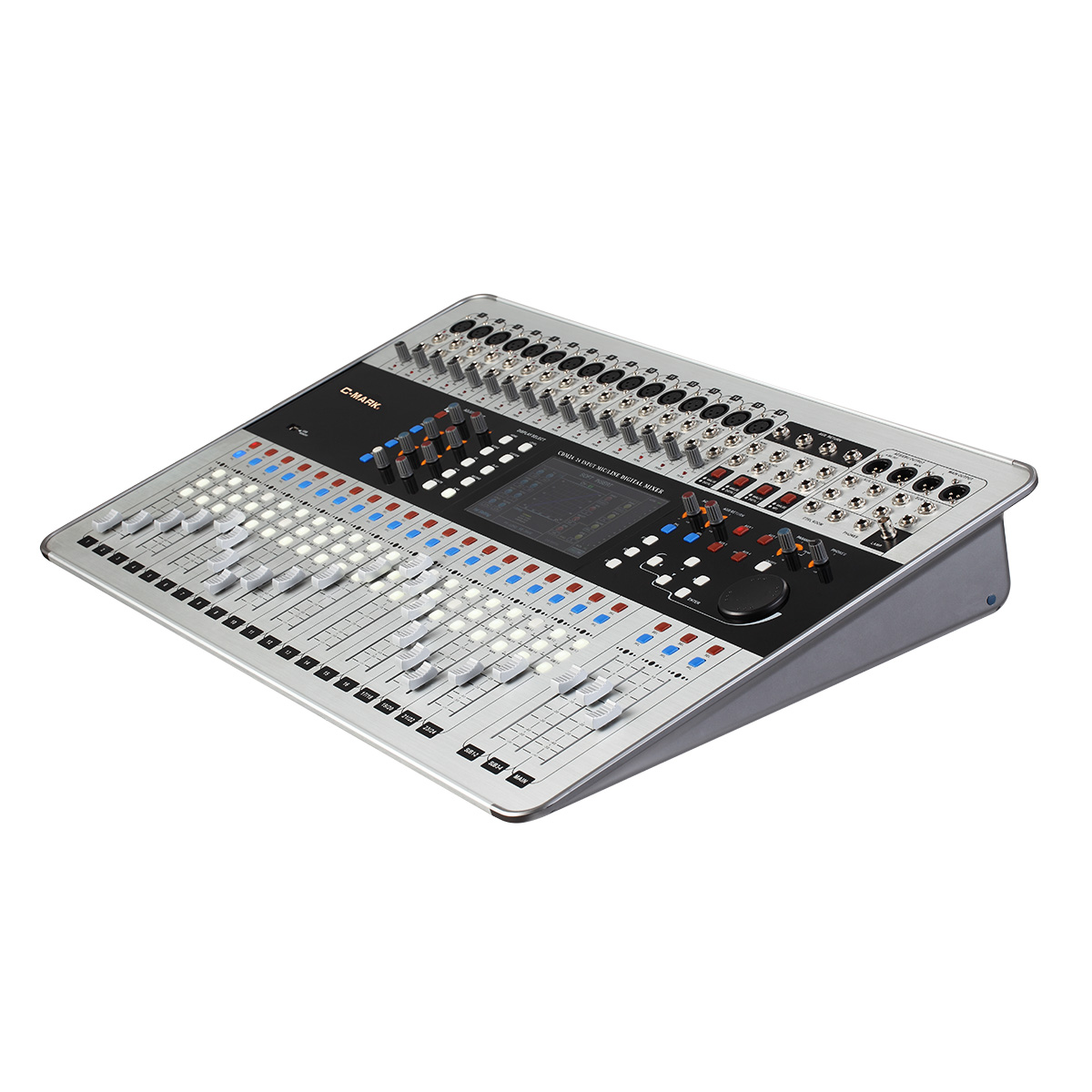

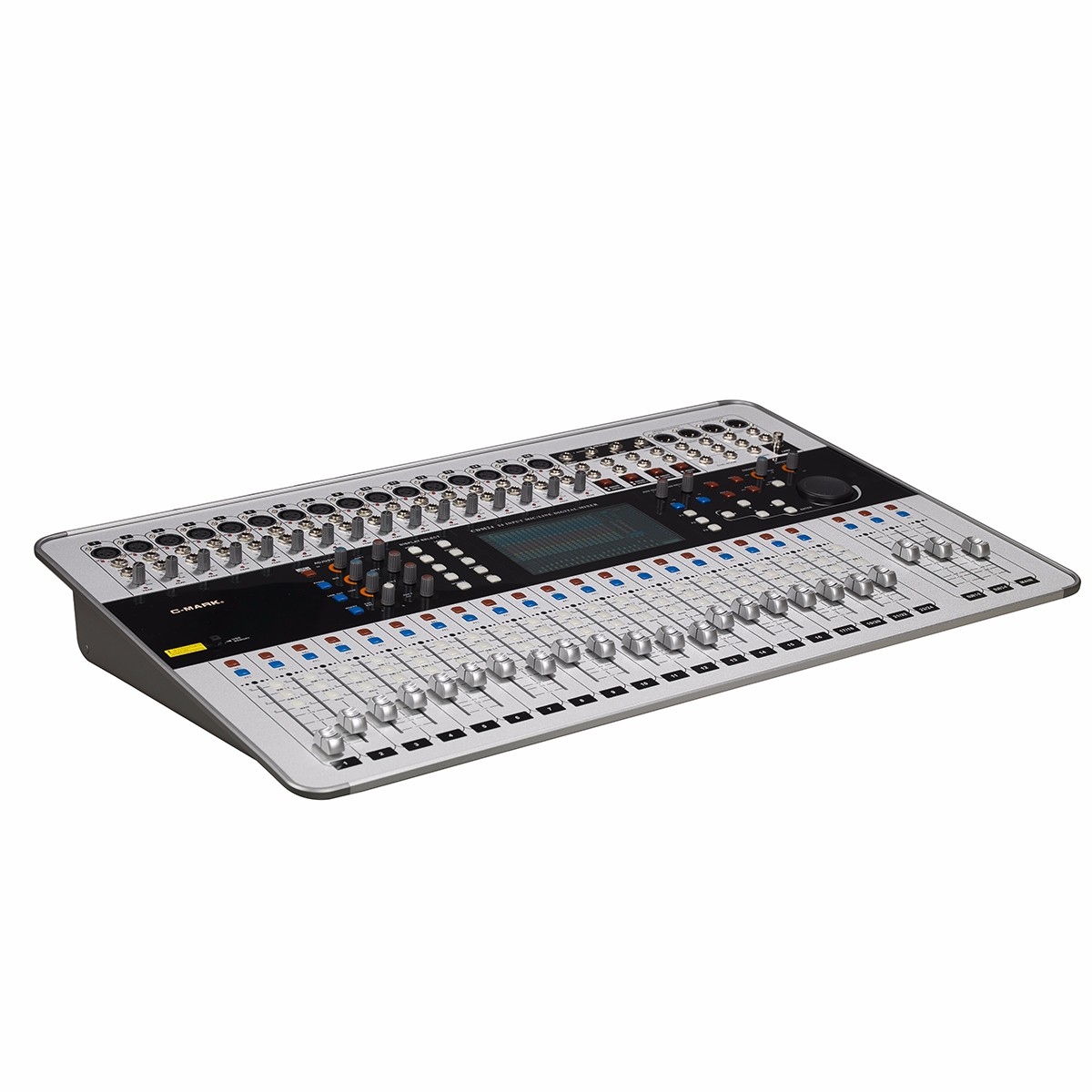

CDM24 Digital Mixer Highlight Features:

1. the fourth generation SHARC floating processor as the core, professional digital audio algorithm

2. 24 channels mixing input including 16 mic/line and 4 x 2 stereo analogue input, 2 SPDIF coaxial, 2 SPDIF optical fiber, 1 AES/EBU, 1 on-board digital audio source

3.12 mixing buses, supporting Main output, monitor output, 4 Channel Group output, 4 Channel AUX output, with interface type of balance analogue, AES/EBU, SPDIF optical fiber and coaxial

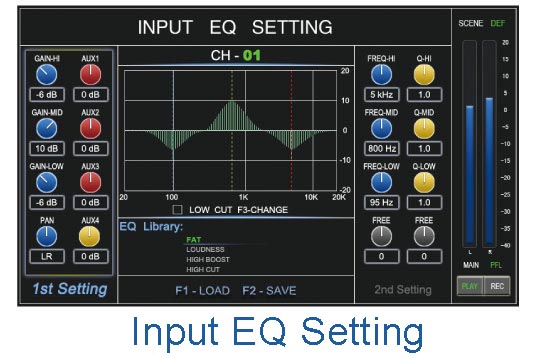

4. dsp functions including high pass filter, 3 band PEQ, Noise Gate, Compressor and Enhancer, auto gain AVC, delay, delete sound of the wind.

5. +48V phantom power and phase switch on each Mic input channel

6. stylish aluminum shell design, dual power supply engines, 100mm fader, TFT large colorful screen

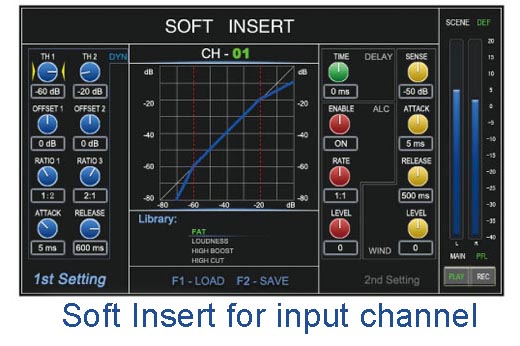

7. built-in digital effector and Insert port

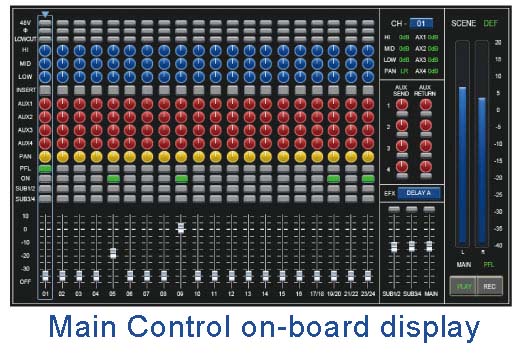

8. real time display of input/output level, with PFL and AFL level and monitor

9. 50 scene settings and tune out, fader tracking mode, abundant pre-setting and users’ definition storage available

10. USB memory interface, supporting digital recording to the U disk, including linear and MP3 formats

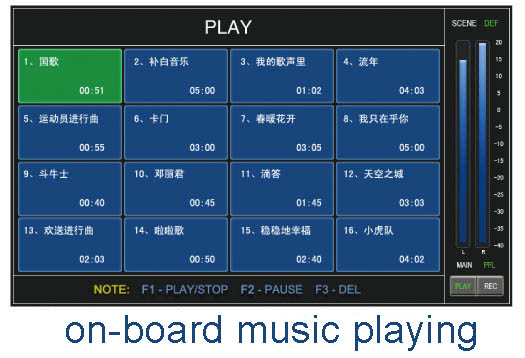

11. Built-in digital player, one-key play memory music

12. IEEE 802.3 network interface, connected LAN or WIFI network, realize PC remote control via TCP / IP and wireless WIFI Ipad control, able to connect with AudioNet network audio platform directly for network transmitting and control for building up a complete digital network audio system from audio source to terminal loudspeakers.
